How to install Curtains

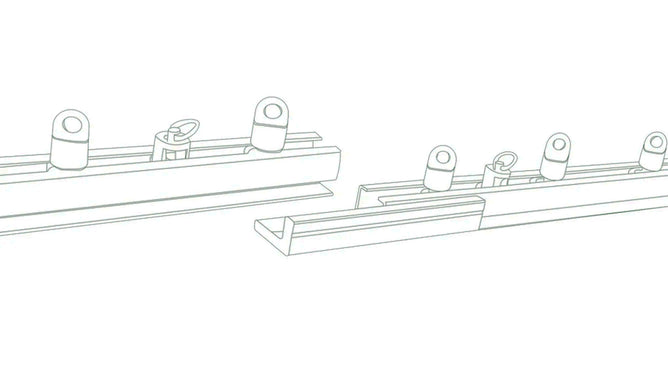

Join your track sections

Tracks ordered at widths over 2300mm will be supplied in split sections. Please note, a little force may be required to connect your track segments to the joiner.

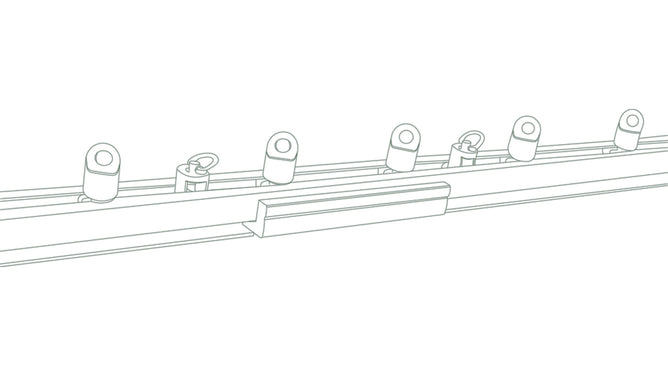

Insert the joiner halfway through one length of the split track by pushing it into the groove until it clicks into place.

Insert the second length of the split track over the exposed half of the joiner, again ensuring it clicks into place.

Mount your brackets

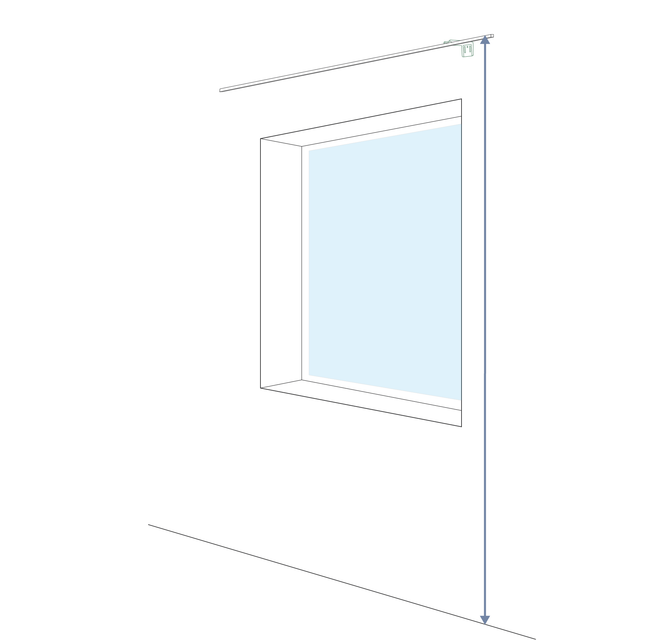

Identify the correct fitting height for your first bracket location. The top side of the track should line up with the drop measurement provided in your order.

*Please note, we have already made a 15mm deduction to your total curtain drop to allow for the curtain to be underslung on your track.

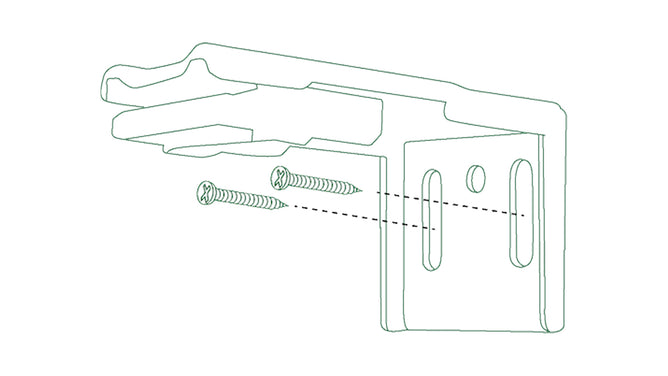

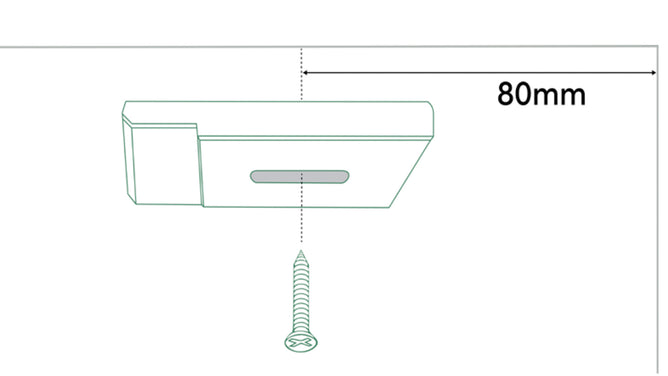

Next, position your first two brackets approximately 150mm from either end of the track. Fasten these brackets to the wall with the provided screws (or screws appropriate for your wall material), ensuring the brackets are horizontally level. Fasten screws in the centre of the bracket holes. This allows you to adjust the bracket up and down to achieve the perfect drop.

Position any remaining brackets evenly between the two end brackets at 700 – 750mm intervals from one another. When arranged, fasten all brackets in place. You should have been supplied with the correct number of face fit brackets to achieve this outcome. If that’s not the case, please contact us for support.

Attach your track

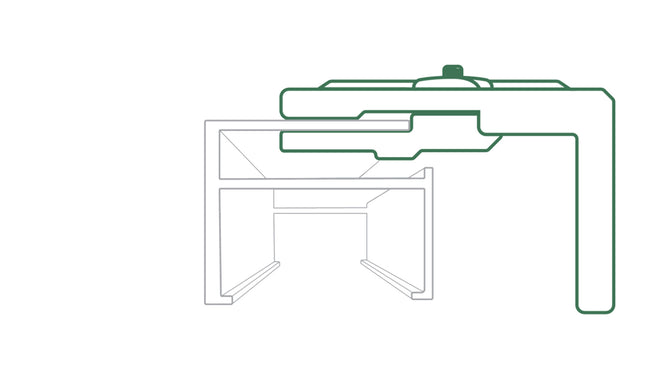

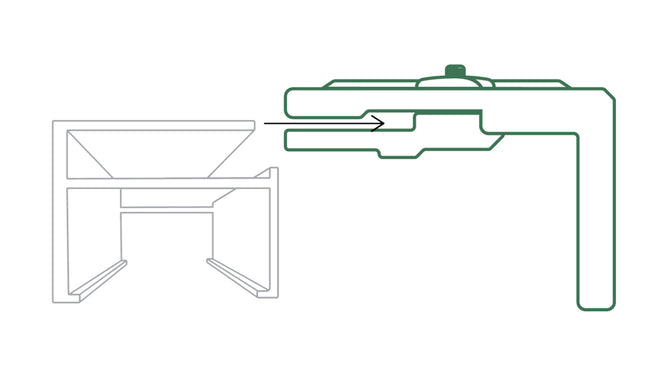

Clip the track into the brackets by securing the back of the track between the metal of the bracket and the plastic clip.

Attach the bracket covers

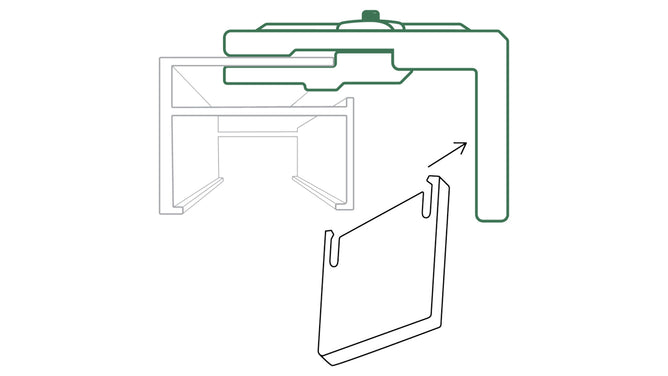

Clip the bracket caps over the internal face of the brackets to cover the screw heads.

Connect the hand wand

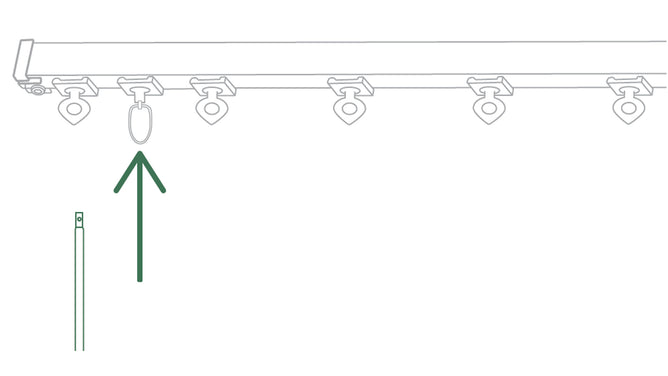

Connect the hand wand to the dedicated runner on the opening side of your track. For S-fold curtains, the dedicated runner will look a little different from the rest of the runners. For a pinch pleat curtains, reserve the second runner for your wand.

Initially, the clip on the wand can be a little stiff. If so, use pliers to gently pry it open so it can be more easily attached to the runner.

Hang your curtains (S-Fold)

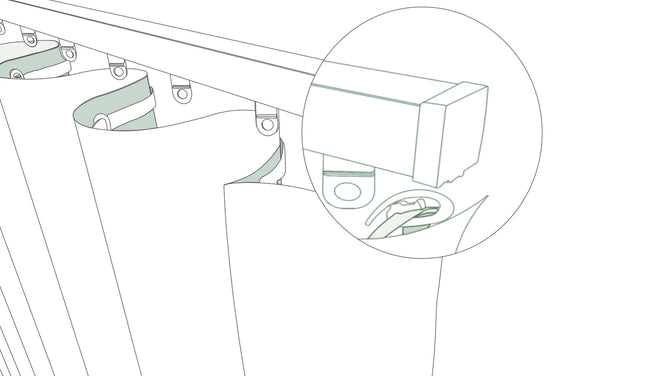

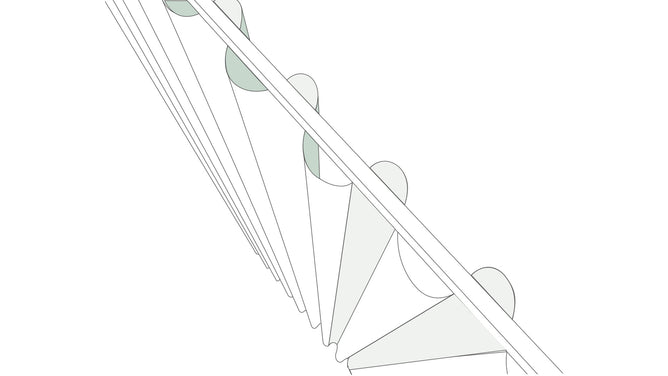

To hang S-fold curtains, use the hooks already attached on the back of the curtain to loop through the string of curtain runners found inside your track. To achieve the wave effect, make sure the waves are of even depth in front and behind the track.

If some waves look ‘shallow’ then gently push that fold back so it creates a deeper wave at the rear. Start the hanging process from the curtain stacking side, with the edge of the curtain pointing towards the window.

Every curtain hook should have a dedicated runner for S-fold curtains

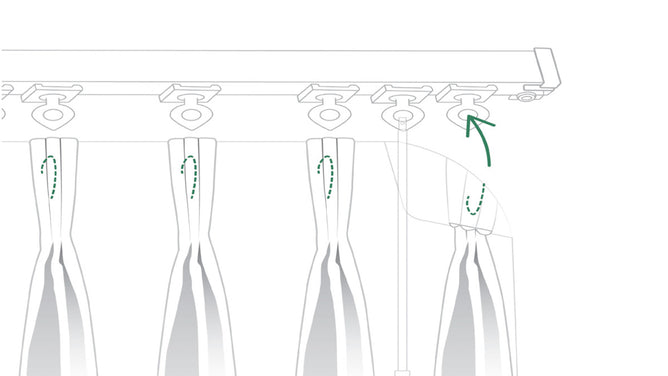

Hang your curtains (Pinch Pleat)

To hang your pinch pleat curtain, simply use the hooks already attached to the back of the curtain to loop through the loose curtain runners. If you require more runners, simply unscrew the end cap of the track and load in as many as you require from the amount provided.

If you feel you need more runners, get in touch and we’ll get them to you.
