If you have adjoining wall spaces and a curved track system is not practical or desired, a butting configuration is a stylish solution that’s well worth considering.
Suitable for internal or external 90 degree corner meeting walls, our butting track system allows two separate curtains to meet at the apex of the corner with a subtle join point that presents beautifully.
Things to consider before starting...
When should I select butting curtains?
We recommend butting curtains when you want the ability to open and close each curtain independently. This is practical for scenarios where one side may need to be opened for light or access while the other remains closed for privacy or shading.
Should I have a curve or butt two tracks together?
Alongside some practical considerations, this normally depends on the look and functionality you're aiming for.
Curved tracks are ideal for creating a continuous curtain across a narrower window alongside a wider one as there is a total width limit for curved track curtains. It's also important to note that our curved track system will only work for internal 90 degree corners, not external ones.
Butting tracks together is better when you want each curtain to operate independently across two longer wall spaces. It's also the only option if you're installing on an external corner.
Can I hang your curtains on my existing track?
Yes, it is possible. However, we strongly recommend ordering a new track with your curtains to ensure they'll work together perfectly. If you'd really like to keep your existing track, get in touch and we'll see if we can tailor your curtain order to work with it.
Measuring your window

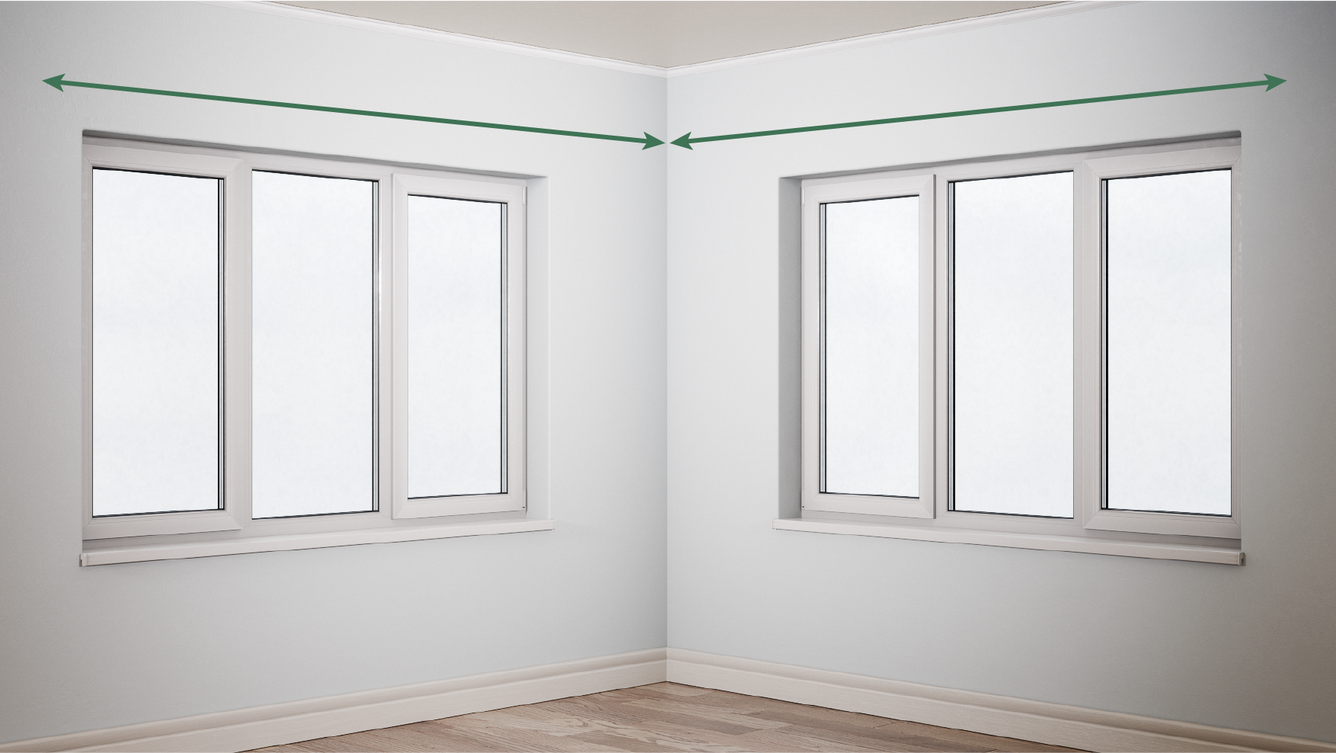

Measure the width for left wall curtain
For the left wall, measure from furthest point left where you would like the track to start into the corner where the two walls meet. Record this as your first track width.
Measure the width of right wall curtain
For the second wall, measure from the farthest point right where you would like the track to start into the corner where the two walls meet. Record this as your second track width.
When placing each order for the two separate curtains that will butt together, select 'Curtains butt in corner' and we’ll make the relevant track width adjustments to each order to ensure your butting fit works beautifully!
Some extra advice...
It’s also worth noting that a butting solution can be applied to three adjoining walls (we call them zig-zags!). If that’s what you’d like to achieve, please email a photo of your space so we can provide specific advice on measuring before you start.
And if you’re planning to install a single curtain into a corner space without another curtain on the adjoining wall, there’s no need to select ‘Curtains butt in corner’ during ordering as we won’t need to make any adjustments to accommodate this arrangement.

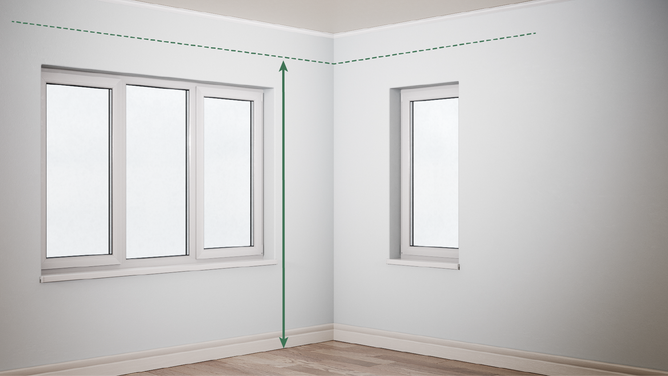

Measure the drop (for face fixing)
We generally recommend the track be placed about 150mm above the existing frame, but this is also down to personal preference.
You may want the track to sit just under the cornice to achieve a floor-to-ceiling effect. With this in mind measure where you want the top of the track to sit on the wall down to the floor.

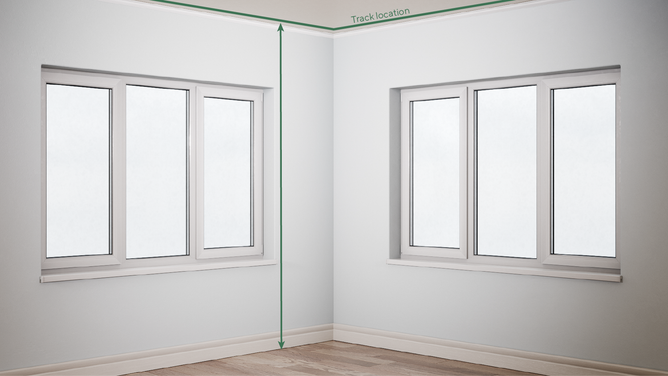

Measure the drop (for top fixing)
Measure from the ceiling surface to the floor. We recommend doing this in several places (left, middle, right side) and recording the shortest measurement to use in your order.
When customising your order, you can choose the finished position of your curtain. We recommend curtains sit just above the floor, but you can also select puddling or just touching the floor. No deductions are necessary on your part; once we know, we'll handle it for you!

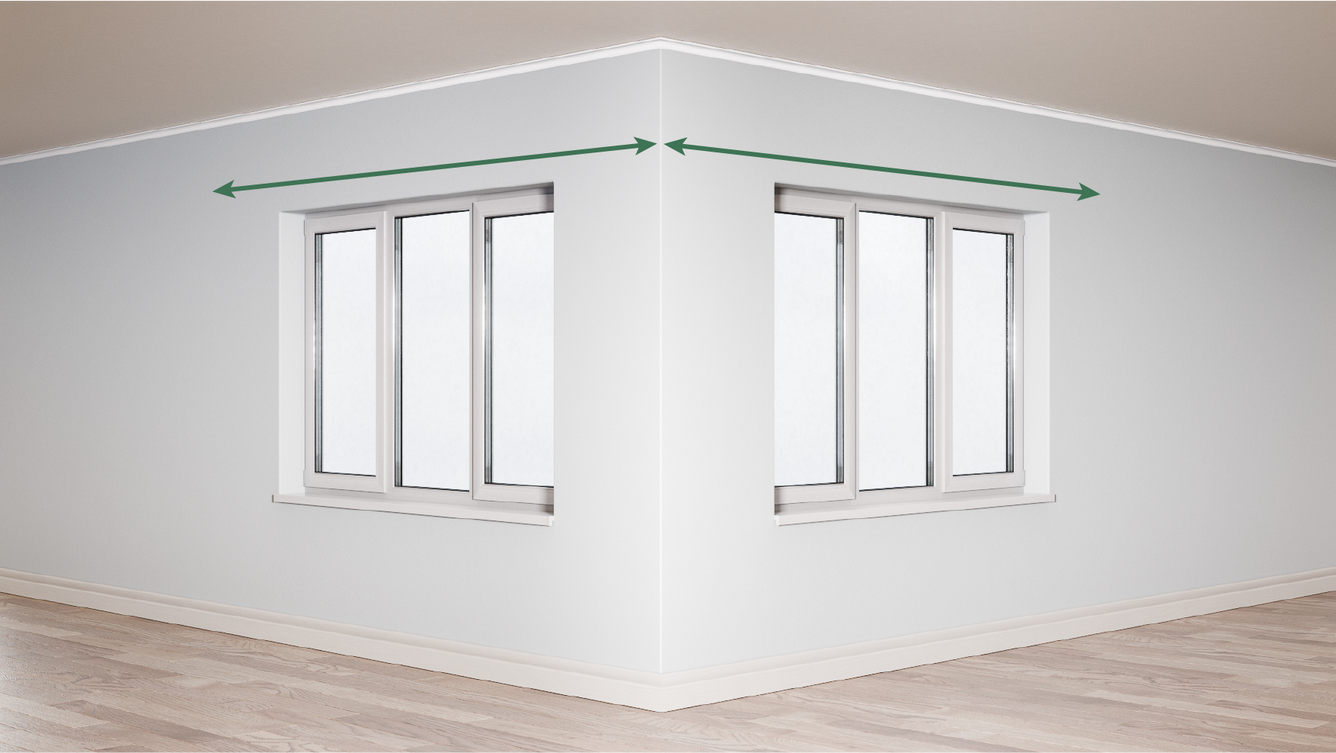

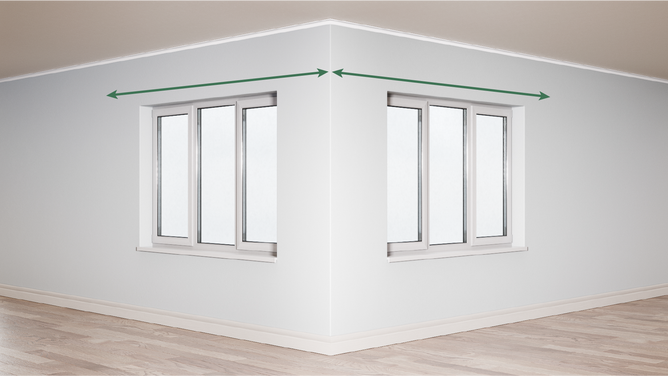

Measure the width of left wall curtain
For the left wall, measure from the furthest point left where you would like the track to start into the corner where the two walls meet. Record this as your first track width.
Measure the width of right wall curtain
For the second wall, measure from the farthest point right where you would like the track to start into the corner where the two walls meet. Record this as your second track width.
When placing your orders for the separate curtains that will butt together, select 'Curtains butt around corner' and we’ll make the relevant track width adjustments to each order to ensure the butting works beautifully.
Some extra advice...
It’s also worth noting that a butting solution can be applied to three adjoining walls (we call them zig-zags!). If that’s what you’d like to achieve, please email a photo of your space so we can provide specific advice on measuring before you start.
And if you’re planning to install a single curtain into a corner space without another curtain on the adjoining wall, there’s no need to select ‘Curtains butt in corner’ during ordering as we won’t need to make any adjustments to accommodate this arrangement.
Measure the drop (for face fixing)
We generally recommend the track be placed about 150mm above the existing frame, but this is also down to personal preference.
You may want the track to sit just under the cornice to achieve a floor-to-ceiling effect. With this in mind measure where you want the top of the track to sit on the wall down to the floor.
Measure the drop (for top fixing)
Measure from the ceiling surface to the floor. We recommend doing this in several places (left, middle, right side) and recording the shortest measurement to use in your order.
When customising your order, you can choose the finished position of your curtain. We recommend curtains sit just above the floor, but you can also select puddling or just touching the floor. No deductions are necessary on your part; once we know, we'll handle it for you!
