How to install Aluminium Venetian blinds

Now that you've got your brand new Aluminium Venetian blind, let's get to the installation. But before you start, please check all the fixing parts have been supplied based on the below references.

The number of fixing parts will vary in relation to the size and number of blinds supplied. In the event of any missing parts, please contact us.

The following tools and instruments are required to complete installation safely and accurately:

• Power drill

• Phillips head screwdriver

• Pencil, paper & tape measure

• Spirit level

• Small step ladder (if required)

• Protective eyewear & gloves (if drilling into masonry, metal or tile)

Installing your Venetian Blinds

Before commencing, verify the correct fitting position using your order summary. A recess fit blind is installed inside the frame of your window.

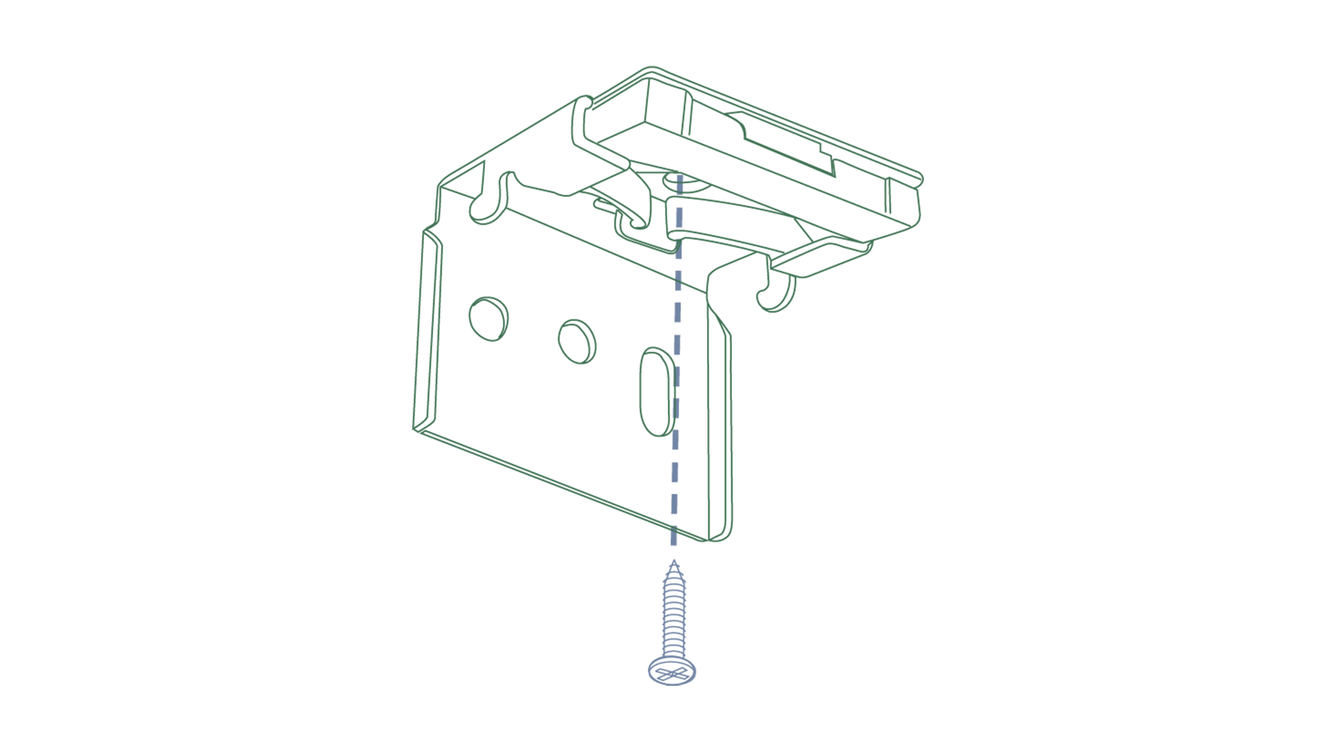

1. Install the mounting brackets

Position the mounting brackets approximately 50mm from each end (left and right) of the blind and fix to the wall or architrave with the screws provided. An extra mounting bracket is required for blinds exceeding 1200mm width. This can be positioned in the centre, between the two side brackets. Always ensure the mounting brackets are not positioned where they will interfere with the working mechanisms of the blind.

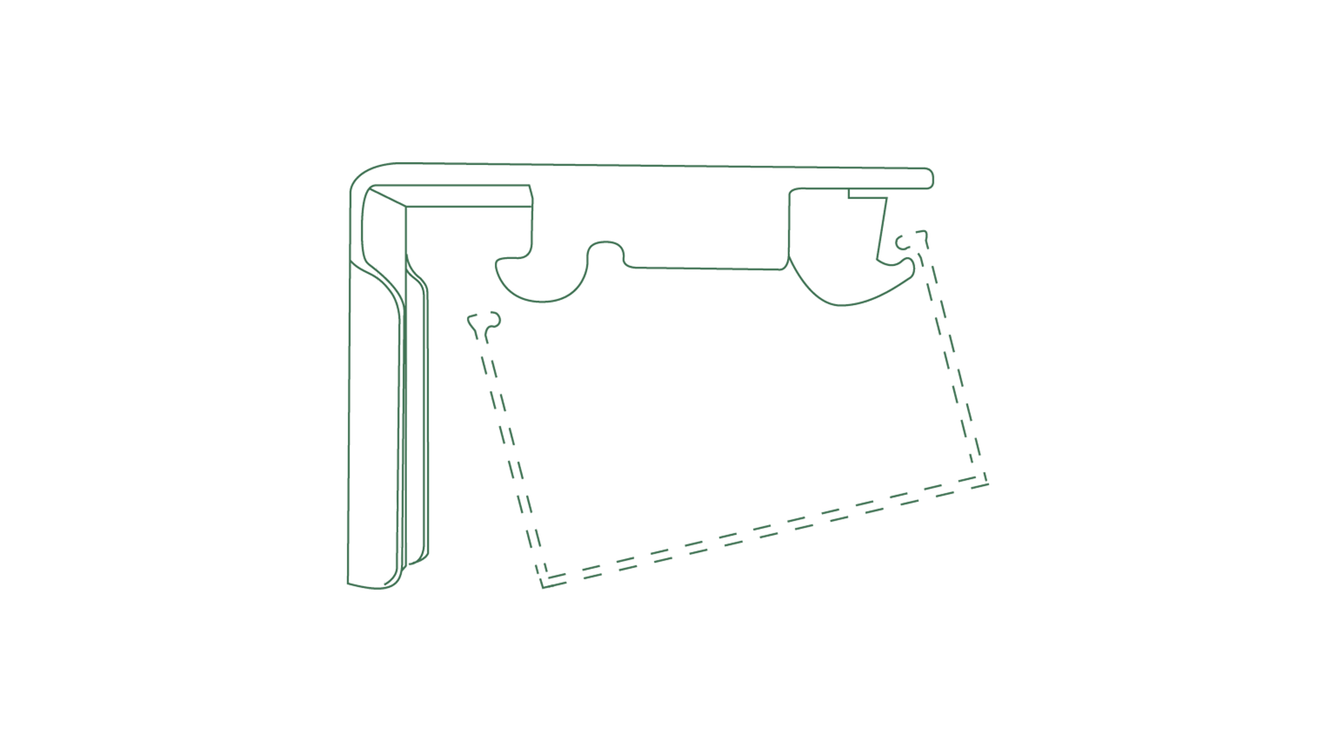

2. Fix the headrail into the brackets

Position the front edge of the headrail into the front hooks of the Mounting Brackets and gently push upwards until the rail “snaps” into position.

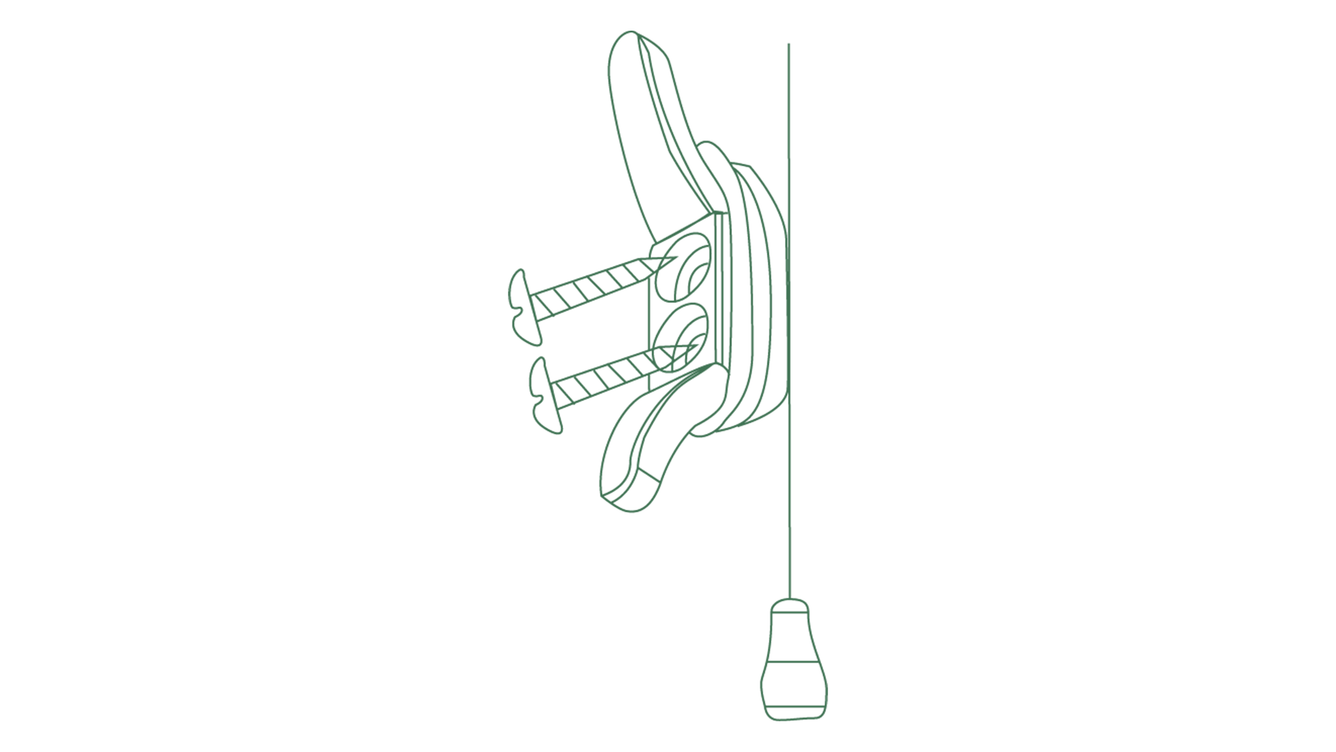

3. Install the cord cleat

Cord cleats must be installed at least 1600mm above floor level to comply with safety guidelines. Fasten the cleat to the wall using the screws provided. Do not use tape, adhesives, stapes or nails to attach the cleat. Once fitted, the cord must be wound entirely around the cord cleat to ensure safe use and must not form a loop longer than 220mm.

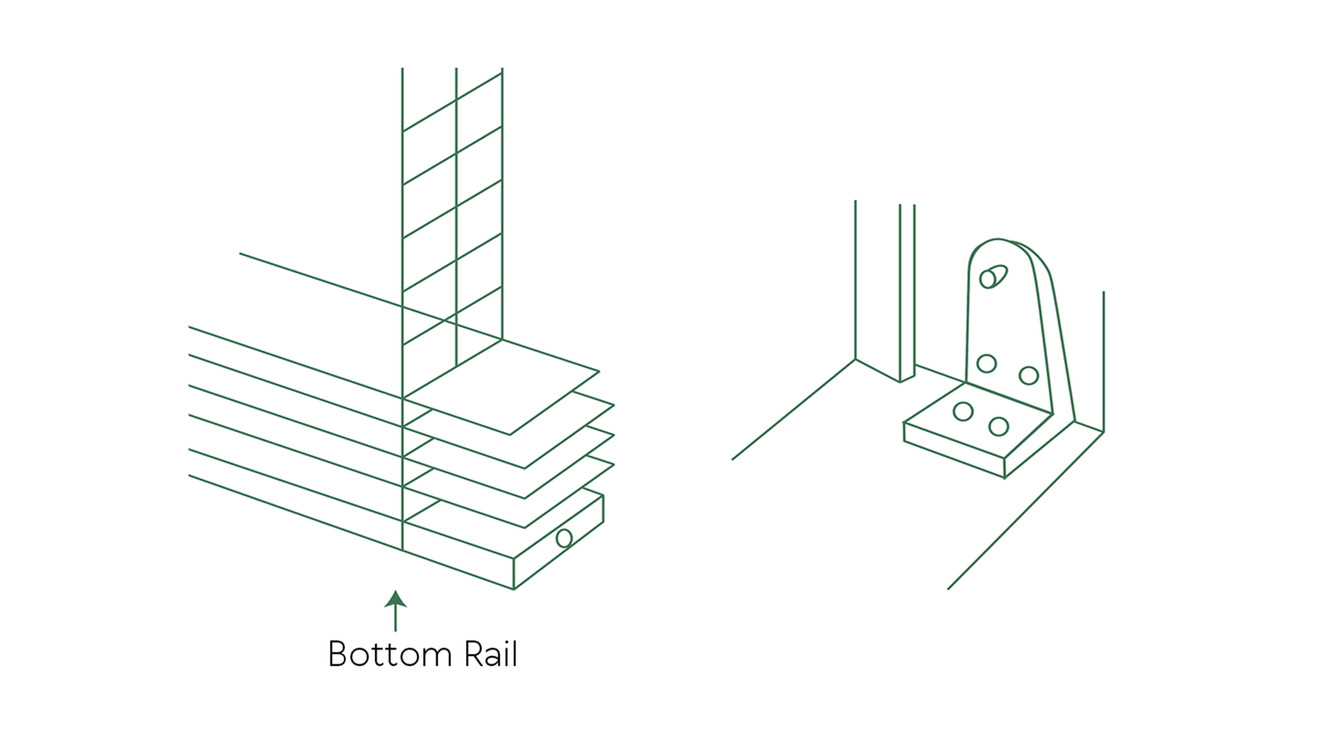

4. Install the hold down clips

Hold clips clips are only supplied if ordered. Use the screws provided to attach the base of the hold down clip to the window recess/sill. Additional fixing is possible through the side of the clip (if suitable). Once attached, snap the hold down clip pin into the guide holes on the end of the blind’s bottom rail.

Before commencing, verify the correct fitting position using your order summary. A face fit blind will sit on the outside frame or architrave of your window.

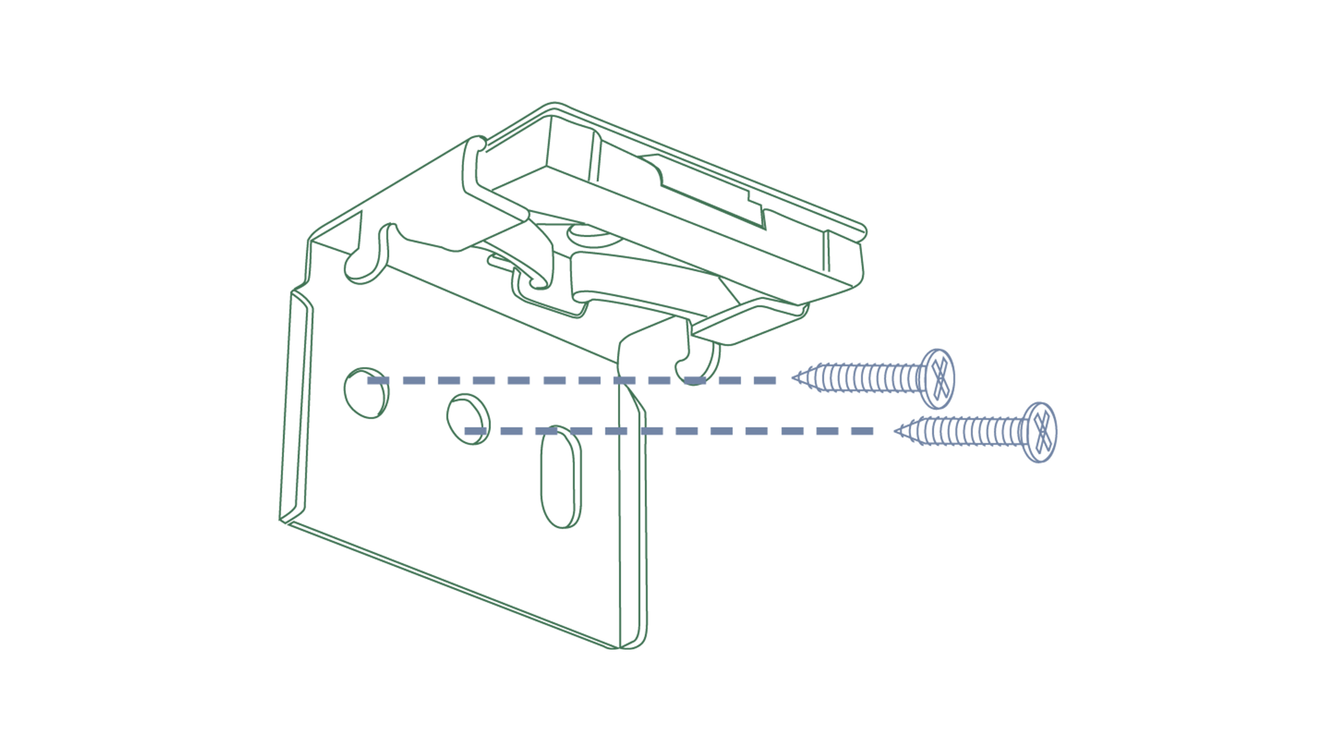

1. Install the mounting brackets

Position the mounting brackets approximately 50mm from each end (left and right) of the blind and fix to the wall or architrave with the screws provided. An extra mounting bracket is required for blinds exceeding 1200mm width. This can be positioned in the centre, between the two side brackets. Always ensure the mounting brackets are not positioned where they will interfere with the working mechanisms of the blind.

2. Fix the headrail into the brackets

Position the front edge of the headrail into the front hooks of the Mounting Brackets and gently push upwards until the rail “snaps” into position.

3. Install the cord cleat

Cord cleats must be installed at least 1600mm above floor level to comply with safety guidelines. Fasten the cleat to the wall using the screws provided. Do not use tape, adhesives, stapes or nails to attach the cleat. Once fitted, the cord must be wound entirely around the cord cleat to ensure safe use and must not form a loop longer than 220mm.

4. Install the hold down clips

Hold clips clips are only supplied if ordered. Use the screws provided to attach the base of the hold down clip to the window recess/sill. Additional fixing is possible through the side of the clip (if suitable). Once attached, snap the hold down clip pin into the guide holes on the end of the blind’s bottom rail.

FAQs

My blind is hitting something!

if yoru blind is hitting an existing window handle or such like, you will need to remount your blind further from the surface (and object) it is hitting or rubbing against.

My blind won't come down!

If your Venetian blind is stuck in the raised position, several factors could be causing this. Begin by checking for any obstructions around the window frame that might be preventing the blind from smoothly descending. Next, inspect the cord mechanism to ensure it isn’t tangled or damaged. If the cords look fine, try adjusting the slat tension to loosen them and facilitate easier lowering of the blinds.

How do I care for my Venetian blinds?

We recommend lightly cleaning your Venetian blinds regularly - ideally at least monthly. Rotate the slats of the blind into their closed position and gently wipe them down with a microfibre cloth on either side. Vacuuming on a low setting with a soft brush-head will also do the trick!

Important Safety Information

The Australian Competition and Consumer (Corded Internal Window Coverings) Safety Standard states that a corded internal window covering ‘must be installed in a way that a loose cord cannot form a loop 220mm or longer and at less than 1600mm above floor level’.
Click the button below for more information on how to ensure your blind installation is compliant with these guidelines.

Click for more
